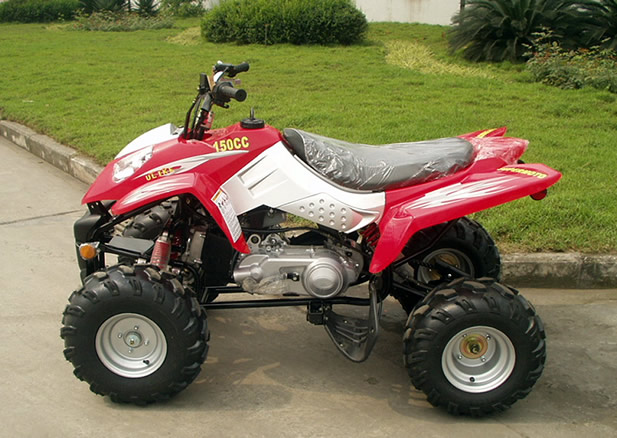

ATV150-2 Specification |
|
|
|
Engine |
|
|
|
Type |
,Air cooled,4-stroke,1 cyliner |
|
|
Displacement |
148ml |
|
|
Bore×Stroke |
57.0mm×57.8mm |
|
|
Maximum Power |
7kw/7000r/min |
|
|
Maximup Torque |
10N.m/5000r/min |
|
|
Max. Speed |
70km/h |
|
|
Compression Ratio |
9.0:1 |
|
|
Starting System |
Electric Start |
|
|
Drive System |
|
|
|
Chassis |
|
|
|
Wheel base |
1115mm |
|
|
Brake(Front/Rear) |
Disc |
|
|
Tire,Front |
21×7-10 |
|
|
Tire,Rear |
20×10-9 |
|
|
Dimensions |
|
|
|
Dimension |
1730mm×1030mm×1100mm |
|
|
Fuel Capacity |
7.1L |
|
|
Climb Angle |
22º |
|
|
Turning Angle |
30º |
|
|
Axle base |
1100mm |
|
|
Ground clearance |
140mm |
|
|
Weight |
160kg |
|
|
|
|
|
